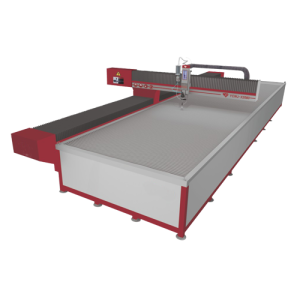

Big Table Size Bridge Type Waterjet Machine
- Description
Product Description
One full set of waterjet machine consists of three basic parts: HP system, cutting table and CNC controller, other accessories for option, like abrasive delivery cooler system, etc.
– Bridge Cutting table
We adopt HIWIN OR I+F ball screw and guideway on the X and Y axis.
And adopt MISUBISHI on servo motor.
– HP sytem
We have 380Mpa and 420Mpa high pressure system for option.
380Mpa with semi imported configuration, 420Mpa is fully imported configuration. You can choose them as per your special demand.
– Control system
We can offer our own cutting system or imported cutting system as per your demand.
– Specification
| Parameters | WJ-L3020 | WJ-L4020 | WJ-L3040 | WJ-L2060 | WJ-L3080 | |
| Efficient cutting area(mm) | 3000×2000 | 4000×2000 | 3000×4000 | 2000×6000 | 3000×8000 | |
| Axis travel
(mm) |
X | 3000 | 4000 | 3000 | 2000 | 3000 |
| Y | 2000 | 2000 | 4000 | 6000 | 8000 | |
| Z | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | |
| Cutting accuracy(mm) | +/-0.1 | |||||
| Positioning accuracy(mm) | +/-0.02 | |||||
| X,Y dry-run speed (m/min) | 0-12(if need 20m/min speed, we can customized) | |||||
| Cutting Speed (m/min) | According to the material and thickness | |||||
